MIL-STD-1553B CABLE ASSEMBLIES AND ACCESSORIES

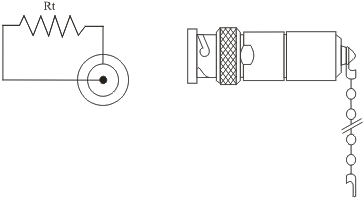

Terminators (4" Chain):
| Part No. |
Plug |
Resistor value in ohms |
| TR 10078 |
PL 75 |
78 ± 2%Ω, 1W |
| TR 13000 |
PL 75 |
3000 ± 2%Ω, 1W |
Cable assemblies:
- Compupower manufactures cable assemblies as per customer's requirements.
Cable assemblies:
Compupower can manufacture cable assemblies as per customer’s requirements.
Part number description:
CA-XX-YYZZ- LLLL
XX : Cable type (Raychem 10614-9 or MIL-C-17/176-00002)
YY : Connector I
ZZ : Connector II
LLLL : Cable length in mm.
| Cable Types |
Connector Types |
| 01: Raychem 10614-9 |
00: No connector |
| 02: MIL-C-17/176-00002 |
01: PL 75 |
| |
02: PL 75C |
| |
03: PL 375 |
| |
04: PL 3155AC |
| |
05: CJ 70 |
| |
06: CJ 370 |
| |
07: CJ 3150AC |
| |
08: PL 3155 |
| |
09: CJ 3150 |
| |
10: DK621-0411P |
| |
11: DK621-0412S |
|
