BUS COUPLER KITS
Compupower offers
Bus Coupler Kits for lab applications during product development
stage related to 1553B designs. The kits basically contain
various type of Connectorized Couplers, Patch cords and
terminators.
TWO TERMINAL BUS COUPLER KITS (PART NO: BCK 102)
| Description |
Part Number |
Quantity |
| Single Stub Data Bus Coupler |
DBC 2001 |
2Nos. |
| 2m cable assembly with PL 75 connector
on either side |
CA-02-0101-2000 |
1No. |
| 1m cable assembly with PL 75 connector
on either side |
CA-02-0101-1000 |
2Nos. |
| 78ohms terminator |
TR 10078 |
2Nos. |

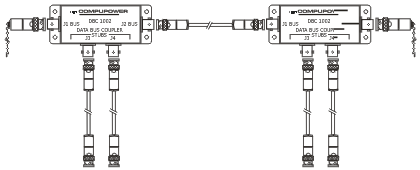

FOUR TERMINAL BUS COUPLER KITS (PART NO: BCK 204)
| Description |
Part Number |
Quantity |
| Dual Stub Data Bus Coupler |
DBC 1002 |
2Nos. |
| 2m cable assembly with PL 75 connector
on either side |
CA-02-0101-2000 |
1No. |
| 1m cable assembly with PL 75 connector
on either side |
CA-02-0101-1000 |
4Nos. |
| 78ohms terminator |
TR 10078 |
2Nos. |

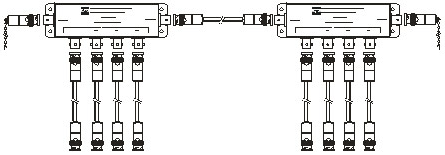

EIGHT TERMINAL BUS COUPLER KITS (PART NO: BCK 408)
| Description |
Part Number |
Quantity |
| Four Stub Data Bus Coupler |
DBC 1004 |
2Nos. |
| 2m cable assembly with PL 75 connector
on either side |
CA-02-0101-2000 |
1No. |
| 1m cable assembly with PL 75 connector
on either side |
CA-02-0101-1000 |
8Nos. |
| 78ohms terminator |
TR 10078 |
2Nos. |
|
)
)
)
